A stunning timelapse view from the beaches of Florida as the Falcon Heavy STP-2 rocket arcs across the sky. Credit: Alex Brock

On Tuesday, June 25th, SpaceX launched their third Falcon Heavy Booster. Called STP-2, the primary aim of the mission was to help qualify the Falcon Heavy for US Department of Defence launches – but that didn’t stop it being the most ambitious mission for any SpaceX launch vehicle to date.

Carrying a total of 24 separate satellites into orbit, the vehicle had to deliver its payload to three distinct orbits around Earth, which in turn required the core stage of the rocket to fly fast enough to make its planned recovery at sea potentially problematic, while the upper stage had to make four individual engine burns – the most ever by a SpaceX launch vehicle.

Lift-off came at 02:30 ET, the rocket powering away from Kennedy Space Centre’s Pad 39-A. As a night-time launch, the flight provided a stunning view of what is called the “Falcon nebula”. This where, after the two Falcon 9 booster stages have separated from the core of the rocket, they flip themselves over while still increasing their altitude, and re-fire their engines to slow their forward momentum in order to start their descent back for a landing at Cape Canaveral Air Force Station. Together with the core booster’s motors still operating at full thrust, their exhausts can create a majestic pattern in the sky. In this case, given all of the three Falcon 9 boosters had been pushed to the limit, the vehicle was much higher in Earth’s rarefied atmosphere and this resulted in the boosters creating a remarkable pattern of colours against the night sky.

The “Falcon nebula”: the colourful plumes from the two Falcon 9 booster stages as they fire their motors in a “burn back” manoeuvre, with the core stage going at full throttle towards the bottom right. Credit: Alex Brock

Both of the Falcon 9 booster stages successfully completed their burn-back manoeuvres and made perfect landings at Cape Canaveral Air Force Station, just south of NASA’s Kennedy Space Centre. It had been hoped that the core stage would make it three-for-three by landing on one of the company’s two Autonomous Drone Landing Ships, parked some 1,200 km off the Florida coast. Unfortunately, such was the speed of the stage, it overshot the landing ship and crashed into the sea, smashing itself to pieces.

However, the loss of the core stage wasn’t the end of the good news for SpaceX. The upper stage continued on into orbit, successfully deploying its entire payload safely. And while it is said that re-naming a vessel can bring bad luck, that didn’t prove the case here, as the company’s high-speed chase vessel Go Ms Tree, which had previously been called Mr. Steven, finally and successfully caught one of the flight’s two payload fairings as they made a return to Earth.

These where the two large “clamshells” that encase the payload during the flight through the denser part of Earth’s atmosphere. When the rocket’s upper stage is high enough, these are jettisoned and – in traditional flights – allowed to burn-up in the Earth’s atmosphere. However, at US $6 million a throw (a cost that has to be passed on to customers), SpaceX prefers to try to recover their payload fairings when they can. This means the fairing use their shape to ease their way into the denser atmosphere before deploying parachutes,  to land – and float – on the sea, but the company would prefer to keep them away from the corrosive influence of salt water.

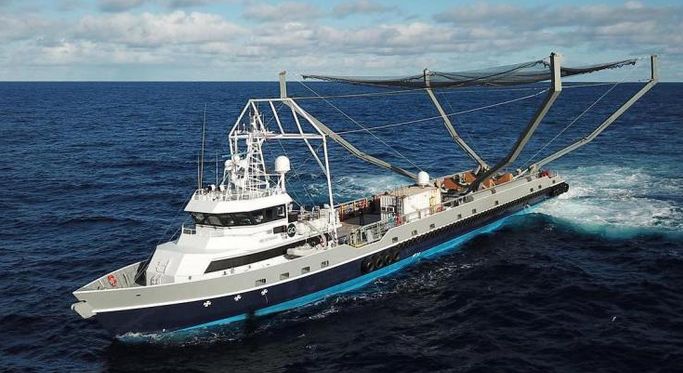

Enter Go Ms Tree. Equipped with a large net over its stern deck, the ship is designed to move at speed under the flight path of returning fairings and snag them in the net. Six prior attempts to achieve this either failed or were abandoned, but on June 25th, the ship did successfully capture one of the returning fairings, although the second still had to make a splash down.

A Dragonfly for Titan

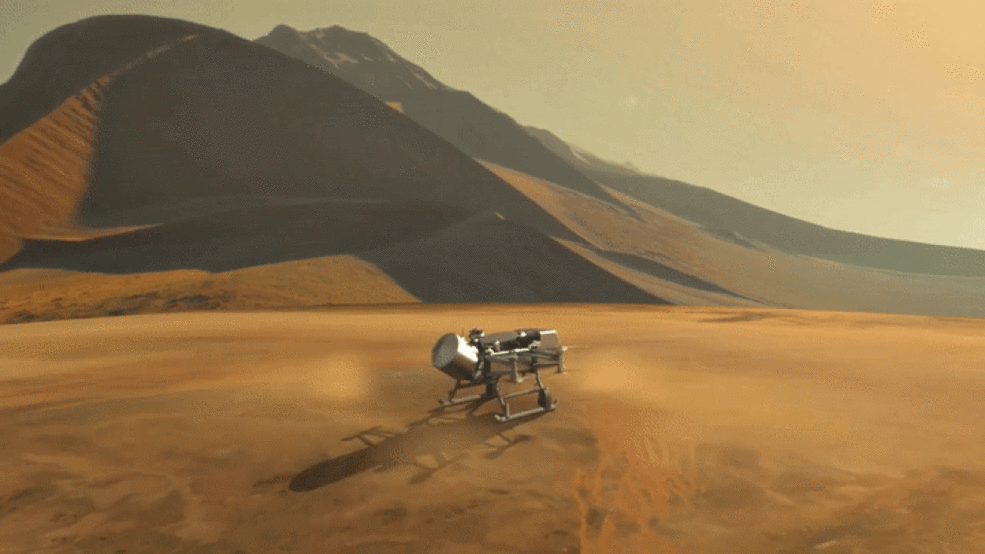

In December 2017, I wrote about a proposal to fly a nuclear-powered dual-quadcopter drone on Saturn’s moon, Titan. One June 27th, 2019, NASA confirmed the mission  – called Dragonfly – has now been officially selected for flight in what will be a tremendously ambitious long-duration mission, due to commence in 2026.

Titan is the only celestial body besides our planet known to have liquid rivers, lakes and seas on its surface, although they contain hydrocarbons like methane and ethane, not water. Nevertheless, they sit beneath a dense atmosphere which has commonalities with primordial atmosphere of Earth and which is rich in complex organic chemicals there such as tholins and polycyclic aromatic hydrocarbons, so these lakes and rivers could contain all the building blocks of life.

Measuring 3 metres (10 ft) in length, Dragonfly is not s small vehicle. Designed by Johns Hopkins’ Applied Physics Laboratory (APL), it is intended to be a be a highly capable vehicle capable of carrying a full suite of science experiments while completing multiple flights on Titan. While the focus of the mission will be to try to determine how far prebiotic chemistry may have progressed there, the vehicle will carry a range of instruments as well, some of which will include:

• DraMS (Dragonfly Mass Spectrometer), to identify chemical components, especially those relevant to biological processes.
• DraGNS (Dragonfly Gamma-Ray and Neutron Spectrometer), to identify the composition of surface and air samples.
• DraGMet (Dragonfly Geophysics and Meteorology Package), suite of meteorological sensors and a seismometer.
• DragonCam (Dragonfly Camera Suite), a set of microscopic and panoramic cameras to image Titan’s terrain and landing sites that are scientifically interesting.

While the mission will launch in 2026, it will take almost eight years to get to Titan, arriving in 2034, when it will become the second vehicle to visit the moon’s surface after Europe’s Huygens lander, which travelled to Saturn and Titan as a part of the Cassini mission.
