Space Sunday: nitrogen nibbles

CuriosityCuriosity, the Mars Science Laboratory rover, resumed operations on Mars resumed operations on March 11th 2015, after an electrical short circuit in the rover’s robot arm caused a suspension of activities while the matter was investigated, and short itself having triggered the rover to switch to a “safe” mode to prevent any potential damage.

The short, was not enough to damage the rover’s electrical systems in any way, occurred occurred when the was attempting to transfer samples of material gathered from a rock dubbed “Telegraph Peak” from the drill head to the CHIMRA system by subjecting the entire turret to rapid vibrations from the drills percussion action. Extensive tests were carried out over 10 days to try to determine if the short was transient, or indicative of a potential fault. Only one test during this time caused a further short, which lasted around 1/100th of the second, and didn’t interrupt the drill motor.

The results of the tests gave engineers a high degree of confidence that the short wasn’t indicative of the major fault developing, and so operations recommenced on March 11th with the transfer of some of the “Telegraph Peak” material being delivered to the rover’s on-board laboratory while analysis of the results from the tests carried out on the drill mechanism continue to be examined.

Walkabout and onwards drive: an overlay showing Curiosity’s meanderings through the “Pahrump Hills” area at the base of “Mount Sharp” from September 2014 through March 2015. The rover is now proceeding further upwards along the slopes of “Mount Sharp”, and will use the valley dubbed “Artist’s Drive” to reach its next destination

As Curiosity now heads on up the slopes of “Mount Sharp”, aiming to pass through a shallow valley dubbed “Artist’s Drive”, NASA  has confirmed that the rover has found “biologically useful nitrogen” on Mars.

Nitrogen is essential for all known forms of life, since it is used in the building blocks of larger molecules like DNA and RNA, which encode the genetic instructions for life, and proteins, which are used to build structures like hair and nails, and to speed up or regulate chemical reactions. On Earth and Mars, however, atmospheric nitrogen is locked up as nitrogen gas (N2) – two atoms of nitrogen bound together so strongly that they do not react easily with other molecules; they have to become “fixed” (separated) in order to participate in the chemical reactions needed for life.

On Earth, certain organisms are capable of fixing atmospheric nitrogen and this process is critical for metabolic activity. However, smaller amounts of nitrogen can also be fixed by energetic events like lightning strikes.

An updated version of Curiosty's "selfie" from February 2013, when the rover was examining the rock dubbed "John Klein".  The original image rendered a "fishbowl" look; in this revised image, the background has been flatened and rendered as seen from a single point in the camera's field of view, while the view of Curiosity is made up of a number of images captured by the rover's Mars Hand Lens Imager (MAHLI)

An updated version of Curiosity’s “selfie” from February 2013, when the rover was examining the rock dubbed “John Klein”. The original image rendered a “fishbowl” look; in this revised image, the background has been flatenned and rendered as seen from a single point in the camera’s field of view, while the view of Curiosity is made up of a number of images captured by the rover’s Mars Hand Lens Imager (MAHLI) – image: NASA / JPL

While Nitrogen has long been known to exist on Mars, a study by the NASA team supporting the Sample Analysis at Mars (SAM) experiment onboard the rover reveals that NO3, a nitrogen atom bound to three oxygen atoms and a source of “fixed” nuitrogen  has been found in numerous samples gathered by the rover during its journey across Gale Crater.

Although the report’s authors make it clear that there is no evidence to suggest that the fixed nitrogen molecules they’ve discovered were created by life. The confirmation that NO3 does exist adds significant weight to the potential for Mars once having the kind of environment and building blocks needed by life. This is particularly relevant, given that one of the areas in which the NO3 was identified is the “Yellowknife Bay” area, which Curiosity examined in early 2013, and which was shown to have once had a very benign environment for life processes, complete with water, many of the right chemicals, and a local source of energy. This prompted Jennifer Stern of NASA’s Goddard Space Flight Centre in Greenbelt, Maryland, and a co-author f the report to note, “Had life been there, it would have been able to use this nitrogen.”

However, it is more likely that the fixed nitrogen that has been discovered may have been generated primarily by the numerous powerful impacts that occurred about 4 billion years ago, during a period known as the Late Heavy Bombardment, when the inner planets of the solar system were “hoovering up” the remaining debris of asteroids and rock scattered across their orbits.  That said, “fixed” nitrogen has also been detected high in the modern day Martian atmosphere by Europe’s Mars Express.  What’s missing at the moment is the capability to get a big enough nitrate signal for any nitrogen isotope data which might exist, as none of the experiments on Mars are broad enough to do so, thus this is likely to be something future missions to Mars will consider.

As well as the NO3 discovery, Curiosity’s science team also revealed an accidental leak within the SAM systems has given them a better means of tagging and identifying complex organic molecules.

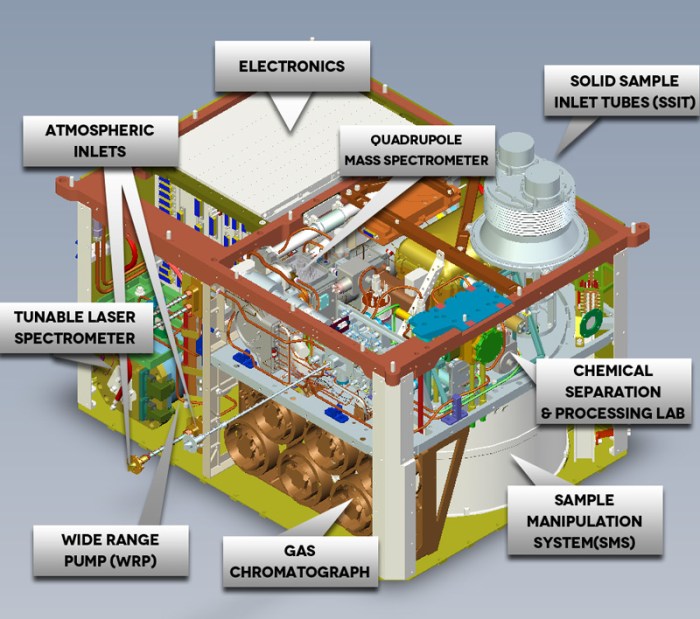

SAM is an amazingly complex suite of instruments compressed into something the size of a large cardboard box

SAM is an amazingly complex suite of instruments compressed into something the size of a large cardboard box

Contained within SAM is the so-called “wet chemistry” experiments designed to preserve and identify suspect carbon-containing components in samples drilled out from rocks. While none of the seven containers in the experiment, which contain a fluid called N-methyl-N-tert-butyldimethylsilyl-trifluoroacetamide, or MTBSTFA, has been compromised, MTBSTFA vapours nevertheless escaped into SAM and caused a degree of contamination early in the mission.

As a result, the mission science teams working with SAM have had to work around the contamination in order to ensure results from any gas chromatograph experiments were not compromised.  The most effective way they found to do this was to extract the enriched vapour, collect it and analyse it in a way that preserved the organics – and thus found a much more comprehensive means of testing for complex molecules.

“We’ve turned this sort of bad thing into a good thing because we’ve learned how to work around this leak. We’ve actually used this vapour from this leak to carry out derivitization,” he said, referring to the technique to tag organics. In particular, the technique has allowed the science team to re-analyse samples gathered early in the mission, revealing more complex molecules than had originally been identified, although they have yet to precisely pin down the compounds making up the molecules.

Rosetta Also Finds Nitrogen

At the time NASA were revealing Curiosity’s discovery of fixed nitrogen on Mars, the European Space Agency indicated that their Rosetta comet mission has discover a peculiar mix of molecular nitrogen on comet Comet 67P/Churyumov–Gerasimenko (67P/C-G). The discovery suggests the comet formed under low-temperature conditions (a requirement to keeping nitrogen as ice).

Rosetta, Europe's mission to unlock the secrets of the early solar system through the study of comet 67p-C/G, and the  Philae comet lander (image: European Space Agency)

Rosetta, Europe’s mission to unlock the secrets of the early solar system through the study of comet 67p-C/G, and the Philae comet lander (image: European Space Agency)

“Its detection is particularly important since molecular nitrogen is thought to have been the most common type of nitrogen available when the solar system was forming,” ESA announced in a press release on March 20th. “In the colder outer regions, it likely provided the main source of nitrogen that was incorporated into the gas planets. It also dominates the dense atmosphere of Saturn’s moon Titan and is present in the atmospheres and surface ices on Pluto and [on] Neptune’s moon Triton.”

The discovery marks the first time that molecular nitrogen has been detected within a comet; previously, nitrogen has only been detected inside compounds such as ammonia or hydrogen cyanide. It was made when Rosetta was orbiting just 10 kilometres (6.2 miles) above the centre of the comet. Even so, the finding has caused some surprise.

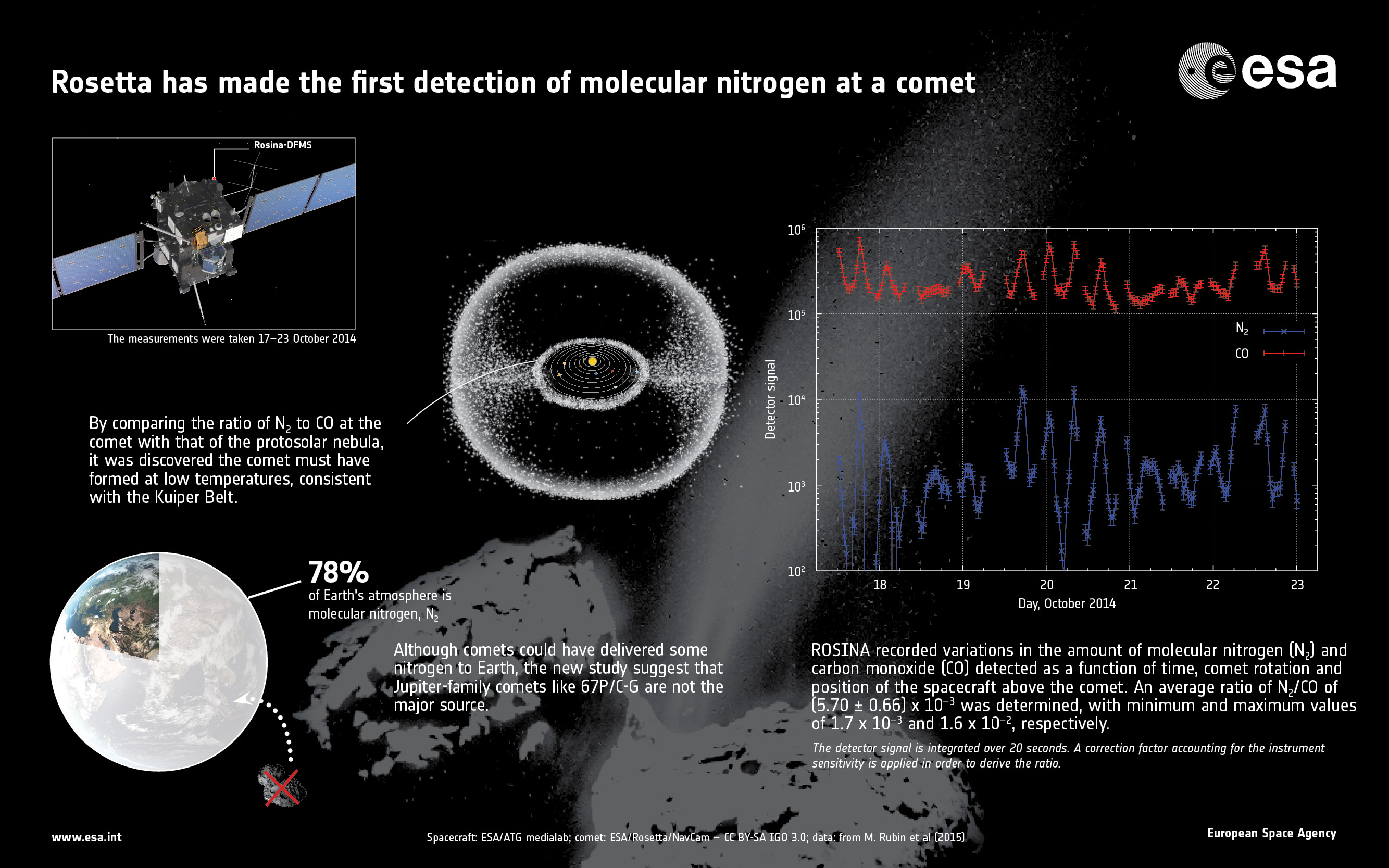

ESA graphic annotating the first discovery of molecular nitrogen at the comet (image: European space Agency)

ESA graphic annotating the first discovery of molecular nitrogen at the comet (image: European space Agency)

While the existence of molecular nitrogen has been anticipated, the ratio of molecular nitrogen to carbon monoxide so far detected is 25 times less than what was expected from models of the early solar system  – carbon monoxide is important for the measurements, because the ice that trapped the molecular nitrogen likely formed at similar temperatures as those needed to trap carbon monoxide.

Several theories have been put forward as to why this might be, including the idea that the ratio may well increase as the comet continues towards the sun and the outgassing of volatiles increases. Nevertheless, the discovery is an important step in further understanding the conditions present at the time the solar system formed.

Related Links

All images courtesy of NASA / JPL or the European Space Agency.
