NASA’s Curiosity rover has resumed its long, slow climb up the slopes of “Mount Sharp”, the 5 km high mound abutting the central impact peak of Gale Crater on Mars.
For the last few months, the rover has been easing its way over what is called the “Murray Formation”, a transitional layer marking the separation points between the materials deposited over the aeons to create the gigantic mound, and the material considered to be common to the crater floor. Named in honour of the late co-founder of The Planetary Society, Bruce Murray, the formation comprises a number of different land forms, which the rover has been gradually examining.
On June 4th, 2016, Curiosity collected its latest set of drilling samples – the 11th and 12th it has gathered since arriving on Mars – on the “Naukluft Plateau”, a further region of sandstone within the Murray Formation, similar to the area dubbed the “Stimson Formation”, where the rover collected samples in 2015.

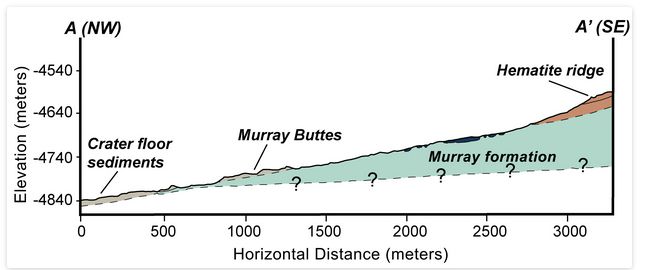

The Murray formation extends about 200 metres (650ft) up the side of “Mount Sharp”. Starting at the “Pahrump Hills” below “Murray Buttes” in late 2014, Curiosity is about one fifth of the way across the region, spending extended periods examined various features within the formation. Credit: NASA JPL
The aim is to carry out comparative geology between the two sites to determine whether or not their formation is related. The “Stimson Formation” sandstone strongly suggested it has been laid down by wind after the core slopes of “Mount Sharp” had been laid down by sedimentary processes the result of Gale Crater once being home to s huge lake, but which had then been subjected to fracturing by the passage of water. These bands of fractured sandstone have become more prevalent as the rover has continued up through the “Murray Formation”, so it is hoped that by obtaining samples from “Naukluft Plateau”, the science team will gain further understanding of precisely what part water played in the evolution of the slopes of “Mount Sharp” after the lake waters had receded.

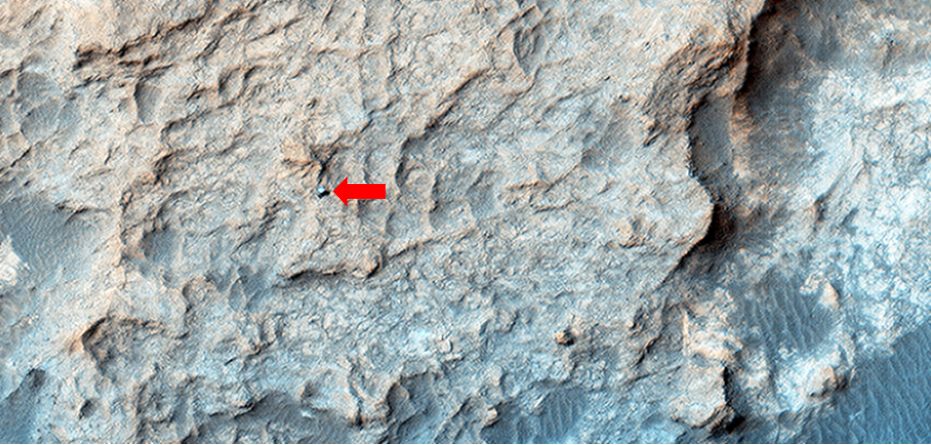

The HiRise imaging system on the Mars Reconnaissance Orbiter (MRO) captured the Mars Science Laboratory rover Curiosity on the Naukluft Plateau in May 2016 Credit: NASA/JPL / University of Arizona
Since completing the drilling operations, Curiosity has turned south, and is now climbing the mound “head on”, rather than gradually zig-zagging its way upwards.
The MSL rover has also provided geologists with another surprise. In mid-2015, the rover collected samples from a rock dubbed “Buckskin”. Reviewing the analysis of the minerals in the samples, as discovered by Curiosity’s on-board laboratory suite, scientists have found significant amounts of a silica mineral called tridymite.
“On Earth, tridymite is formed at high temperatures in an explosive process called silicic volcanism. Mount St. Helens, the active volcano in Washington State, and the Satsuma-Iwojima volcano in Japan are examples of such volcanoes,” said Richard Morris, a NASA planetary scientist at Johnson Space Centre. “The tridymite in the Buckskin sample is thought to have been incorporated into “Lake Gale” mudstone as sediment from erosion of silicic volcanic rocks.”
The find is significant because although volcanism did once take place on Mars, it has never been thought of as being silicic volcanism, which is far more violent that the kind of volcanism associated with the formation of the great shield volcanoes of the Tharsis Bulge and other regions of Mars. So this discovery means geologists may have to re-think the volcanic period of Mars’ early history.
China Launches Long March 7
Saturday, June 25th saw the inaugural launch of China’s Long March 7 booster, a vehicle I wrote about back in April 2016. The launch was also the first from China’s fourth and newest space launch facility, the Wenchang Satellite Launch Centre, located on Hainan Island, the country’s southernmost point.
The Long March 7 is a core component to China’s evolving space ambitions. Classified as a medium lift vehicle, it can carry around 13.5 tonnes to low Earth orbit (LEO), it will operate alongside China’s upcoming heavy lift launcher, the Long March 5. This craft will be capable of lifting around the same payload mass directly to geosynchronous orbit, and around 25 tonnes to LEO. Both vehicles will play a lead role in China’s plans to expand her explorations of the Moon, establish a permanent space station in Earth orbit by 2022, and reach Mars with automated missions.
China’s Long March 7 (right) launched on it inaugural flight on Saturday, June 25th. The bigger Long March 5 (left) is due to launch later in 2016. Credit: China state media
The inaugural launch of the Long March 7 took place at noon GMT on Saturday, June 25th (20:00 local time). It carried a Yuanzheng 1A upper stage and a scale model of China’s next generation crewed orbital vehicle into an orbit of 200 km (120 mi) by 394 km (244 mi) as confirmed by US tracking networks.
Yuanzheng is an automated “space tug” China has used numerous times to deliver payloads to their orbits, and is capable of re-using its engine multiple times. It is most often used to boost China’s communications satellites into higher orbits.
The sub-scale capsule was used to carry out an atmospheric re-entry test to gather data which will be use to further refine and improve the re-entry vehicle which will form a part of China’s replacement for its ageing, Soyuz-inspired Shenzhou crew vehicle. This unit returned to Earth, landing in a desert in Inner Mongolia on Sunday, June 26th, after orbiting the planet 13 times. Also aboard the vehicle was a “cubesat” mission to test a navigation system, and a prototype refuelling system.
