Space Sunday: InSight, space and interstellar space

InSight on Mars, December 6 2018, on Flickr
InSight’s first full selfie on Mars, captured on December 6th, 2018 (Sol 10) and released on December 11th. It displays the lander’s solar panels and deck. On top of the deck are its science instruments, weather sensor booms and UHF antenna. Credit: NASA/JPL.

It’s been a further busy week for NASA’s InSight Lander as it starts to get down to business. In particular, the rover has been further exercising its robot arm and preparing for the start of operations – work that has involved surveying its local surroundings.

The week started with NASA releasing InSight’s first “selfie”, a mosaic of 11 images captured by the Instrument Deployment Camera (IDC), located on the elbow of the lander’s robotic arm. Clearly visible in the completed image is the copper-coloured seismometer that will be placed on the surface of Mars to listen to the planet’s interior with its silver protective dome just behind it. Also visible is the black boom of the robot arm rising mast-like.

The IDC is one of two camera systems on InSight, but the only one that is fully mobile. It will be used in conjunction with the Instrument Context Camera (ICC), fixed to the lander’s hull, to correctly place the surface instruments of the SEIS seismometer and the HP3 drilling mechanism on Mars.

The static nature of the ICC means that placement of the surface instruments is limited to an arc directly in front of the lander, and as well as taking selfies, InSight has been using the IDC to survey this area from above.

InSight on Mars, December 1 2018, on Flickr
A mosaic 52 individual images captured by the IDC of the ground directly in front of the lander. It shows the area where the spacecraft will eventually set its science instruments, with the lavender line marking the preferred area for placing SEIS and HP3. Credit: NASA/JPL

Deployment of these two instruments will take time. While operations will start in the coming week, they will likely take around two months to complete. The SEIS will be deployed first. This will be a complex task, placing the unit on the surface first, followed by its protective cover, designed to prevent the Martian wind and atmospheric changes affecting the readings the seismometer takes of the planet’s interior.

If all goes according to plan, the HP3 will be deployed in around mid-January. It will commence operations as soon as possible after deployment. However, it will be an extended process before the instrument starts to deliver on its science goals. This is because the self-hammering heat probe within HP3 – nicknamed the mole – has to “drill” its way some 5 metres (16ft) below the Martian surface. However, it will take time because the probe must pause periodically to release a burst of heat that will help it determine the nature of the material around it and possible hazards below it.

They were speaking about the seven minutes of terror on landing, now I’m saying we have two months of terror in front of us when we penetrate into the surface. The drilling mechanism relies on pushing aside dirt. Smaller rocks it can either push aside or burrow around, but a large rock – 1 metre [3ft] in diameter or so – would stymie the probe’s drilling mechanism.

– Tilman Spohn, of the German space agency DLR, and HP3’s principal investigator

In particular, the effectiveness of HP3 depends on how deeply it penetrates the regolith.

InSight on Mars, December 1 2018, on Flickr
Three images captured by the HiRISE camera on NASA’s Mars Reconnaissance Orbiter, released on December 13th, 2018. Left: the lander’s aeroshell and parachute. Right: the heat shield, discarded after EDL and ahead of parachute deployment on November 26th, 2018. Centre: InSight itself with a surrounding ring of regolith blasted by the lander’s landing motors. The teal colour is not genuine, but the result of sunlight being reflected off of the lander and its parts saturating the HiRSE imaging system. Credit: NASA/JPL

The less we penetrate, the worse it will be. If it’s just 1 m (3 ft) or so deep, the team will need to rely on more intensive modelling. But if it reaches 3 m (10 ft), which should occur around mid February, the team will be pleased — and if it can reach the full depth of 5 m (16 ft) around March 10th or so, all the better.

– Tilman Spohn

The survey of the landing site has helped confirmed that despite early misgivings when InSight first touched-down, the area occupied by the lander is about as free from rocks and possible surface hazards for SEIS and HP3 as might have been possible to find.

Virgin Galactic Reaches Space with VSS Unity

On December 13th, 2018, Virgin Galactic carried out a supersonic flight test that carried VSS Unity into space for the first time – at least according the NASA’s and the US Air Force’s reckoning. The success of the flight takes Virgin Galactic closer to taking paying customers on the six-passenger rocketplane, which is about the size of an executive jet, on sub-orbital flights into space.

Virgin Galactic’s WhiteKnightTwo carrier aircraft VMS Eve, with VSS Unity slung beneath it, takes to the air from the Mojave Air and Space Port in the early hours of the morning, local time, on December 13th, 2018. Credit: Virgin Galactic

Unity, also referred to as SpaceShipTwo, was carried aloft by its mothership, WhiteKnightTwo from the Mojave Space Port to an altitude of 13,100 metres (43,000 feet). It was then dropped from the carrier jet, allowing the crew of two, Mark “Forger” Stucky and former NASA astronaut Rick “CJ” Sturckow, to ignite the single rocket motor. Burning for 60 seconds,  the motor allowed Unity to start a rapid climb and achieved Mach 2.9, nearly three times the speed of sound.

After engine cut-out, the vehicle continued to climb for a further minute, reaching an altitude of 82 km (51 miles) – enough to put it across the line NASA and the US air Force consider to be the edge of space relative to Earth (80 km / 50 mi above sea level).

A dramatic shot of Unity, having been released by Eve, igniting its rocket motor at the start of a climb from 13 km to 82 km in just 2 minutes.

Once Unity reached apogee, the two pilots were afforded some brief moments of microgravity. They then “feathered” the tail booms, causing the vehicle to gently fall back into the denser atmosphere like a shuttlecock. Once air density was sufficient, the tail sections returned to their “regular” position, allowing the vehicle to achieve unpowered aerodynamic flight, landing back at Mojave Air and Space Port at 08:14 local time (16.14 UTC), with the flight from the drop to the landing lasting 14 minutes in total.

While NASA and the US Air Force view the edge of space being at 80 km, the Fédération Aéronautique Internationale (FAI), the international standard-setting and record-keeping body for aeronautics and astronautics, officially place the boundary between atmosphere and space – called the Kármán line – at 100 km (62 mi; 330,000 ft). Nevertheless, the flight is enough for Stucky to gain his astronaut wings, and for Virgin Galactic to talk in terms of commencing passenger-carrying operations in the near future.

The view from the cockpit at 82 km above the Earth. Credit: Virgin Galactic

Virgin Galactic believe that unless significant issues are found following this latest flight, Unity’s fourth, then only three more tests flights will be required before the company can move flight operations to their operational base in New Mexico, with commercial flights potentially starting shortly thereafter.

So far, some 700 people have signed-up for flights with Virgin Galactic. Some have paid the initial full price of US $250,000 per ticket, others have only paid a deposit in the knowledge that prices may actually rise slightly once flights commence, prior to levelling out.

As well as Unity, the Virgin group is currently building two additional SpaceShipTwo vehicles.  These will be used with Unity to fly both passengers and science cargoes on sub-orbital flights, some of which – as I’ve previously noted – may in time be operated out of Europe.

<iframe width=”560″ height=”315″ src=”; frameborder=”0″ allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” allowfullscreen>

Voyager 2 Reaches Interstellar Space

On December 10th, 2018, NASA announced they believed Voyager 2 had passed into interstellar space, following on the heels of its sibling, Voyager 1, which crossed the boundary between interplanetary and interstellar space – referred to as the Heliopause – on August 25th, 2012.

To recap on the Voyager programme: grown out of a much grander mission idea called the Grand Tour (read more here), Voyager saw two identical vehicles, Voyager 2 (launched: August 20th, 1977) and Voyager 1 (launched: September 5th, 1977) and designed to use a unique alignment of the outer planets to be able to “hop” from one to the next, using their gravities to “slingshot” them onwards.

An artist’s impression of of a Voyager probe. Credit: NASA

However, as astronomers were keen to take a look at Saturn’s largest Moon, Titan, Voyager 1 was placed on a trajectory around Saturn that would effectively mean the planet’s gravity would toss it “up” out of the plane of the ecliptic, leaving it unable to visit any of the outermost planets. This also put it on course to leave the solar system much sooner than Voyager 2, which also encountered Jupiter (July 1979, six months after Voyager 1) and Saturn (August 1981) before travelling onward to pass both Uranus (January 1986) and Neptune (August 1989).

The Heliopause is actually the outer layer of a “bubble” surrounding the Sun and the planets of the solar system referred to as the Heliosphere. In plasma physics terms, this is the cavity formed by the Sun in the surrounding interstellar medium. The “bubble” of the heliosphere is continuously “inflated” by plasma originating from the Sun, known as the solar wind. Outside the heliosphere, this solar plasma gives way to the interstellar plasma permeating our galaxy.

The other parts of the Heliosphere are the termination shock, where the solar wind is rapidly slowed to subsonic speeds due to the outside pressure of the interstellar medium. It marks the start of the Heliosheath, a broad transitional region between the inner heliosphere and the external environment, of which the Heliopause forms the outer layer.

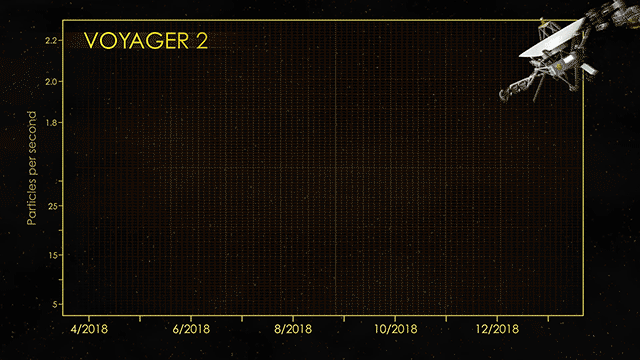

An animated GIF of data returned by the cosmic ray subsystem aboard NASA’s Voyager 2 spacecraft that provided the evidence that the vehicle had left the heliosphere: a steep drop in the rate of heliospheric particles that hit the instrument’s radiation detector, and significant increases in the rate of cosmic rays. Credit: NASA/JPL / GSFC

Voyager 2 actually passed the termination shock in 2007, and has been travelling through the Heliosheath,  and it was originally thought it would enter interstellar space in early 2016, with its plasma spectrometer providing the first direct measurements of the density and temperature of the interstellar plasma. However, it was not until November 2018 that the instrument returned data suggesting it had encountered the Heliopause, and confirmation of this was given on December 10th, 2018, with Voyager 2’s official passage out of the Heliopause being given as December 5th, 2018.

At present, the Voyager 2 probe is more than 18 billion km (11 billion mi) distant from Earth, which means that signals sent to and from the spacecraft take about 16.5 hours to reach their destination. It is travelling outwards from the Sun at a rate of 3.3 AU  per year, or roughly 491,040,000 km (306,900,000 mi).

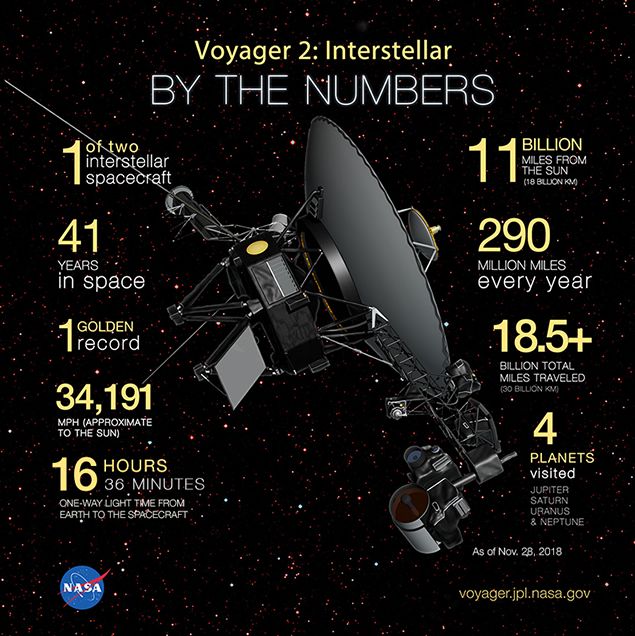

Voyager 2’s remarkable 41-year history in numbers

While the probes are technically in interstellar space, it is important to note that neither Voyager has actually “left” the Solar System. The outermost boundary of the latter is considered to be the Oort Cloud, which the Voyager spacecraft will reach in about 300 years. At their current speed, it will be roughly 300,000 years before they pass beyond it. Unfortunately, both will be out of power long before. Both Voyagers are powered by three radioisotope thermoelectric generators (RTGs) that use plutonium as a source of heat and electrical power generation. However, it is anticipated that the RTGs on both of the vehicles will no longer be able to generate meaningful power by the mid-2020s.

In the meantime, both are helping scientists better how our heliosphere interacts with the constant interstellar wind flowing from outside our Solar System. These observations complement data provided by NASA’s Interstellar Boundary Explorer (IBEX), which is remotely sensing that boundary, and help lay the foundations for studies to be performed by the Interstellar Mapping and Acceleration Probe (IMAP), scheduled to launch in 2024.

Voyager has a very special place for us in our heliophysics fleet. Our studies start at the Sun and extend out to everything the solar wind touches. To have the Voyagers sending back information about the edge of the Sun’s influence gives us an unprecedented glimpse of truly uncharted territory.

– Nicola Fox, director of NASA’s Heliophysics Division
