Space Sunday: of Venus, Cosmic Girl and Cygnus

Artist's impression of Akatsuki in orbit around Venus
Artist’s impression of Akatsuki in orbit around Venus

It is not often that I get to report on a space event that is happening right as I’m wiring about it; but that is precisely what happened as I wrote this edition of Space Sunday.

As I was typing, high above Venus, a little cube-like space craft measuring just over a metre on a side and supported by two stubby solar panel “wings”, had been making a final desperate attempt to enter orbit around the planet.

Akatsuki (“Dawn”), is a Japanese space probe also known by the names Venus Climate Orbiter (VCO) and Planet-C. Its mission is to study the dense, intense atmosphere of Venus and gain greater insight into how it formed, whether it has active weather phenomena such as lightning, and whether Venus itself may still be volcanically active. It is also a vehicle which has taken “the long way around” in order to reach its target.

Originally launched on May 20th, 2010 Akatsuki should have entered orbit around Venus on December 7th of that year. In order to do so, the vehicle had to carry out a 12-minute “burn” of its main engine to slow itself to the point where it would be caught by Venus’ gravity and so swing into an elliptical orbit. However, while the engine did fire as expected, a fuel valve failed, preventing the burn from being completed as required, and Akatsuki failed to achieve the desired orbit, and instead was left strained in a heliocentric (Sun-centred orbit) which would bring the craft back into proximity with Venus five years later – on the evening (UK time) of the 6th / 7th December 2015.

Having managed to keep the little craft alive and functioning during the intervening years, this second encounter offer a final opportunity to get Akatsuki safely into orbit around Venus, where it might complete its primary mission. Final because the craft has already far exceeded its operational life span, and such an opportunity is unlikely to come again.

Emily Lakdawalla provided this diagram of the Akatsuki orbit insertion attempt
Emily Lakdawalla of The Planetary Society provided this diagram of the Akatsuki orbit insertion attempt

So it was that at around 23:51 UTC on Sunday, December 6th, Akatsuki fired one set of its reaction control system (RCS) thrusters for 20 minutes in an attempt to push itself into an extended orbit around Venus (VOI – for Venus Orbital Insertion – in the diagram above).  Entirely automated, the attempt could, if required, be followed by an additional motor firing if telemetry received on Earth indicated the first burn had failed.

At 00:24 UTC on December 7th, data received from the vehicle, having taken over 8 minutes to be transmitted to Earth and then be processed, indicated the initial motor firing had been successful, and that Akatsuki should have established itself in an extended elliptical orbit around Venus, between 300,000 to 400,000 km above the surface of the planet. This is somewhat greater than the original orbit for the craft, which would have varied between 300 to 80,000 km, but it still should be close enough for the probe to undertake most of its science mission, although it will be several hours before this is confirmed.

 Cosmic Girl Gets Ready to Launch

Virgin Galactic is probably best known for two things: Richard Branson and trying to develop a sub-orbital flight capability which will allow fare-paying tourists enjoy a few minutes of “weightlessness” at the edge of space, marketing itself as the “world’s first commercial space line”.

However, the company is also looking to enter the lucrative market of commercial satellite launches, using a vehicle they’ve christened LauncherOne. The vehicle is specifically intended to to provide a launch capability for “smallsats”, sub-500 kg satellites, an increasingly poplar market sector, but one where very often the main means of getting into orbit is by “hitch-hiking” aboard launchers carrying other payloads.

Virgin Galactic: entering the satellite launch market with the 2-stage LauncherOne
Virgin Galactic: entering the satellite launch market with the 2-stage LauncherOne

Unlike most boosters, LauncherOne is designed to be air-launched. That is, carried aloft by an aircraft to an altitude of some 10,770 metres (35,000 ft) before being released to allow its first and second stage motors carry its payload up to the required orbit.

The technique isn’t new – it is used most notably by the Pegasus launch system developed by Orbital ATK, and which first flew in 1990. However, the technique offers some significant advantages. The most obvious of these is that by lifting the booster a fair way out of the denser part of the Earth’s atmosphere, less fuel is required for the rocket to reach orbit, reducing its overall mass and cost. Air-launched missions also aren’t restricted to a launchpad; they can be undertaken from any airport where there are suitable facilities for handling the booster itself, thus maximising the potential launch profiles a customer might need. When all the benefits are put together, it means that Virgin Atlantic can offer tailor-made smallsat launch capabilities to clients for just US $10 million a shot.

White Knight Two flying to the Farnborough air Show in 2012 with a mock-up of the original LauncherOne mounted beneath it (Image: Virgin Galactic)
White Knight Two flying to the Farnborough air Show in 2012 with a mock-up of the original LauncherOne mounted beneath it (Image: Virgin Galactic)

Initially, LauncherOne was being designed to be flown aloft and launched by Virgin Galactic’s White Knight Two carrier aircraft, use with its more famous SpaceShip Two crewed vehicles. However, this was found to be too limiting; reliance meant that LauncherOne operations would have to wait on Whit Knight Two’s availability between space tourist flights. It also meant the rocket could only carry a maximum payload mass of 250 kg (661 lbs) for equatorial launches, or 100 kg (220 lbs) for polar launches.

to overcome these issues, it was decided LauncherOne should have its own dedicated launch aircraft – a Boeing 747, allowing Virgin Galactic to both increase the number of possible launches per year to customers and increase the rocket’s payload capabilities to 450 kg to equatorial orbit or 300 kg to polar – and without increasing the targeted price tag of US $10 million per launch.

An artist's impression of Cosmic Girl, as it is expected to look in its Virgin Galactic livery, having just released a LauncherOne vehicle
An artist’s impression of Cosmic Girl, as it is expected to look in its Virgin Galactic livery, having just released a LauncherOne vehicle

On December 3rd, 2015, Virgin Galactic unveiled LauncherOne’s new carrier aircraft, a Boeing 747-400. Formerly a part of Virgin Atlantic’s passenger fleet, where it was called Cosmic Girl, the aircraft has spent the last 14 years flying the company’s London to San Francisco route.  And while it might appear as if the aircraft was chosen on the basis of its name, it wasn’t; it was selected purely on the basis of its impressively clean operational history and excellent maintenance record.

In order to carry LauncherOne on the first leg of its journey into space, Cosmic Girl will now undergo a 50,000 man-hour maintenance check, which should be completed by February 2016. After this, it will fly to San Antonio, Texas to undergo extensive modification in order to be able to lift, support and deploy LauncherOne, a process which is expected to take most of 2016. One completely, the aircraft will undergo a series of flight tests in California during 2017, both with and without the LauncherOne craft, ready to undertake its first formal launch flight towards the end of that year.

Cygnus Returns to Flight

Sunday, December 6th saw Orbital ATK’s Cygnus cargo vehicle return to flight operations after being grounded for more than a year, the result of a launch operations accident in October 2014.

Cygnus is one of several uncrewed vehicles designed to resupply the International Space Station with consumables and deliver science and other equipment on a regular basis. It most commonly operates alongside the Dragon resupply vehicle, operated by SpaceX out of the United States, the Russian Progress resupply vehicle, and Japan’s H-II Transfer Vehicle (HTV).

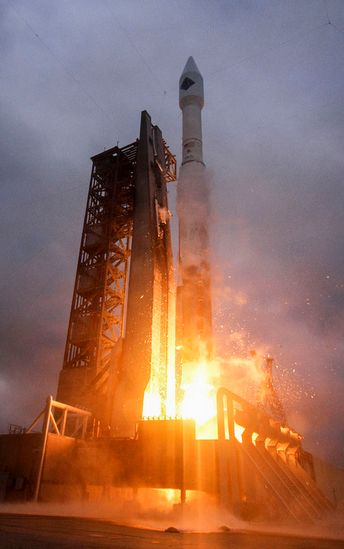

The Atlas V booster carrying the Cygnus resupply craft Deke Slayton II, lifts-off from Canaveral Air Force Station at 21:44 UTC on Sunday, December 6th
The Atlas V booster carrying the Cygnus resupply craft Deke Slayton II, lifts-off from Canaveral Air Force Station at 21:44 UTC on Sunday, December 6th

The craft is capable of delivering up to 3.6 tonnes of consumables and equipment to the ISS, depending on the launch configuration, and Orbital ATK has been contracted to fly 8 resupply missions to the space station.

However, the third of these resupply flights (and what would have been the 4th Cygnus flight to the ISS) was lost seconds after lift-off from the Wallops Island launch facilities in Virginia, USA, following a catastrophic failure within the Antares launch vehicle (also developed by Orbital ATK).

The December 6th, 2015 launch itself came after three prior attempts had to be postponed due to bad weather at the Canaveral Air force Station launch facilities. Such were the local weather conditions, even this launch was only given a 40% chance of going ahead.

However, at 21:44 UTC, the United Launch Alliance booster carrying the Cygnus craft, designated Deke Slayton II, in honour of Mercury / ASTP astronaut Donald K “Deke” Slayton, lifted off successfully.

An enhanced version of the Cygnus vehicle, the Deke Slayton II will arrive at the ISS on Thursday, December 10th, bringing some 3.5 tonnes of supplies and equipment to the space station, including sets of the Microsoft HoloLens, HMD.  These will be used to provide assistance to ISS crews, utilising both a “Remote Expert Mode” which allows someone on Earth to see exactly what the astronaut wearing the headset is seeing, and thus allow them to provide advice and assistance directly through the headset, and a “Procedure Mode” which overlays physical objects aboard the ISS with holographic animated images, providing additional reference and information on what to do and what to expect while carrying a task.
